8kW Solar PV System, EV Charger, and Power Diverter

What was installed?

• X20 JA 405w Solar PV Panels
• X2 Solis 6kw Hybrid Inverters
• X3 Pylontech 3.6kw Batteries
• X1 Eddi Power Diverter
• X1 Zappi EV charger

Benefits?

• The homeowners are saving 70% of their electricity bills by now using renewable energy.
• From the mass energy savings, the homeowners pay back period is 8 years, meaning anything saved after this period is profit.
• The house value has now been increased by around 14% by having solar pv panels installed.

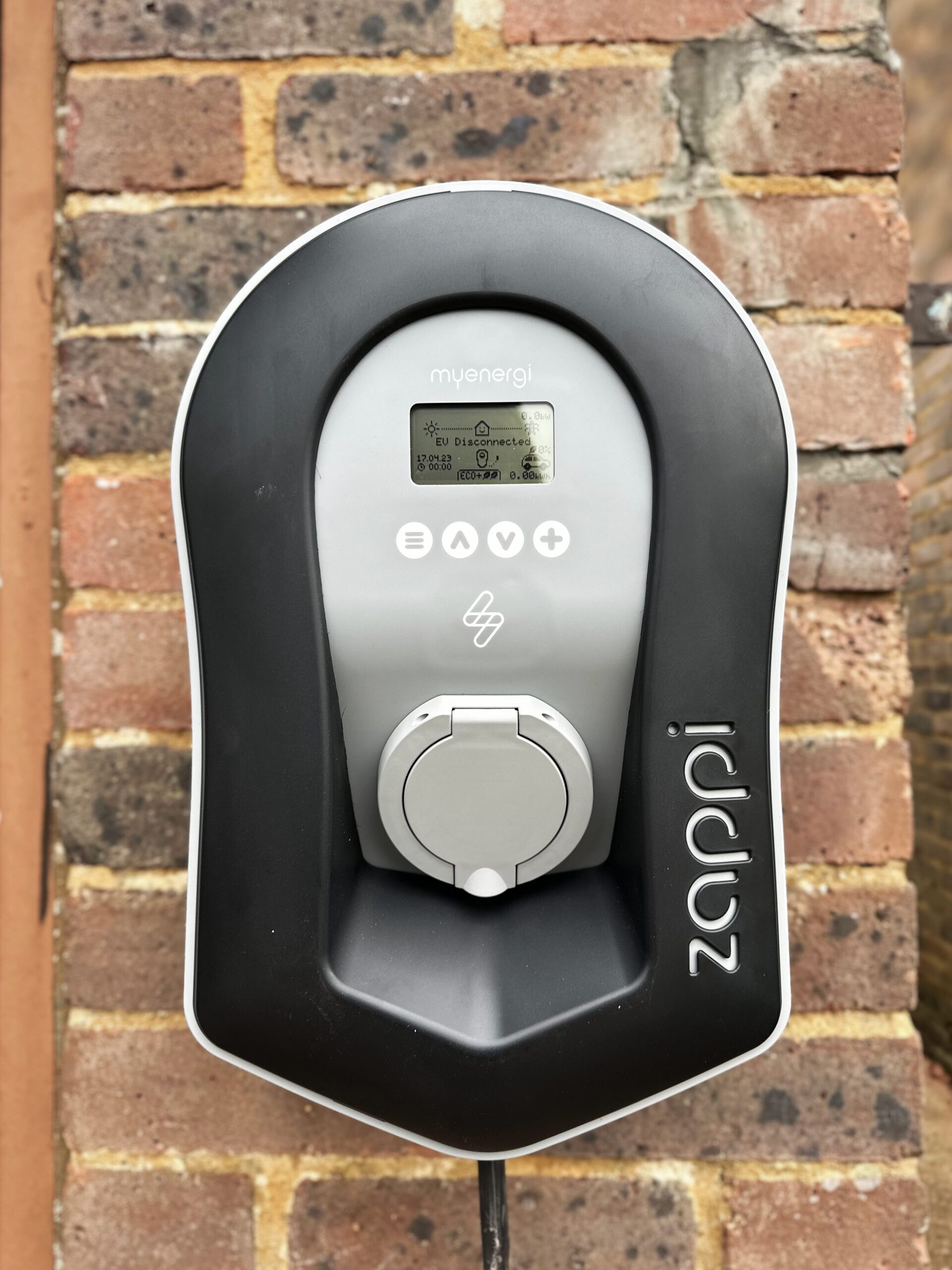

• The Zappi EV Charger is working together with the solar PV Panels allowing the homeowners to now charge their electric car free of charge using the renewable energy the solar panels are generating

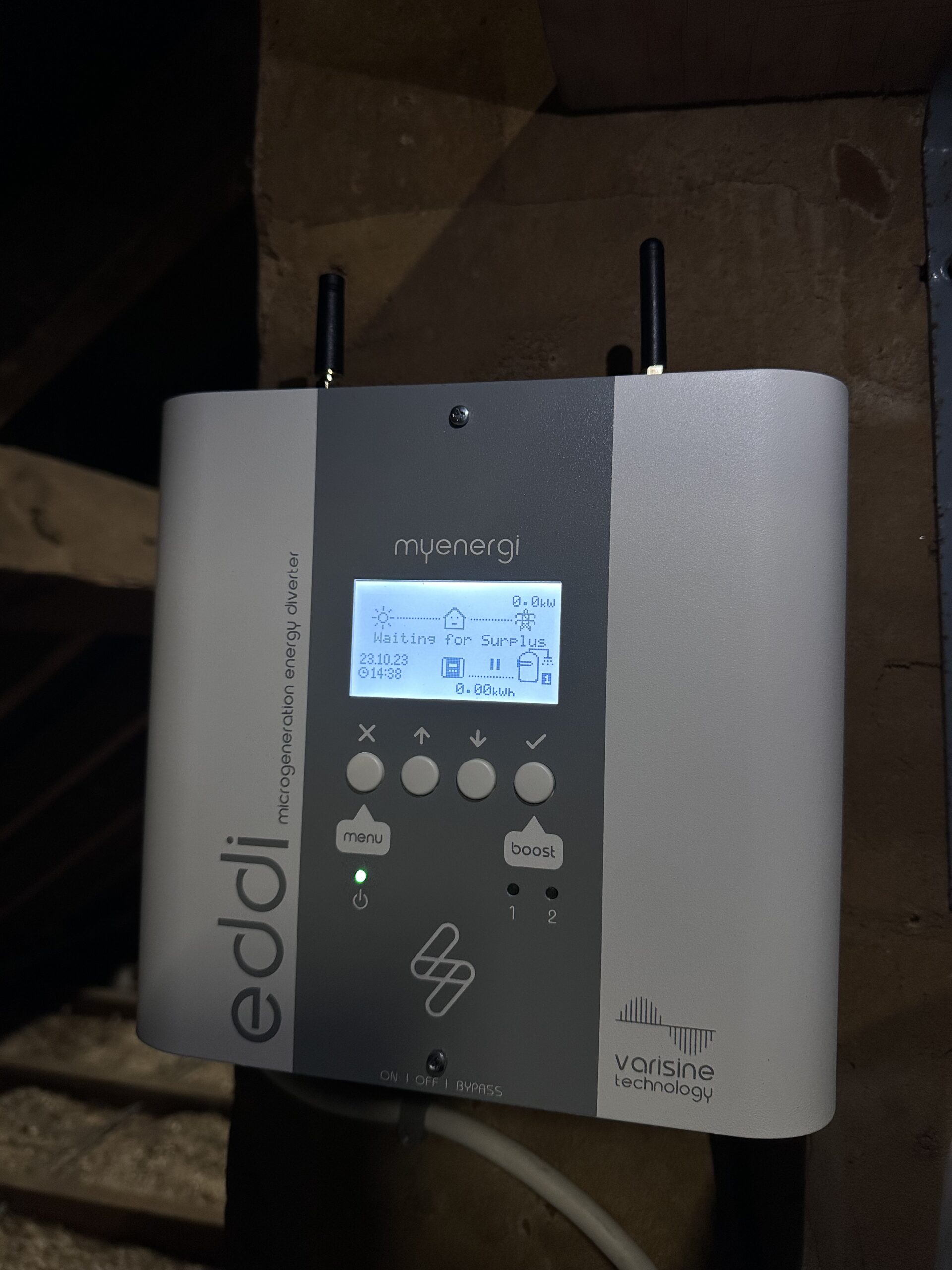

• The Eddi Power Diverter sends any surplus electricity your solar panels produces to your water, heating it, saving the homeowners money on their hot water bills.

The Process

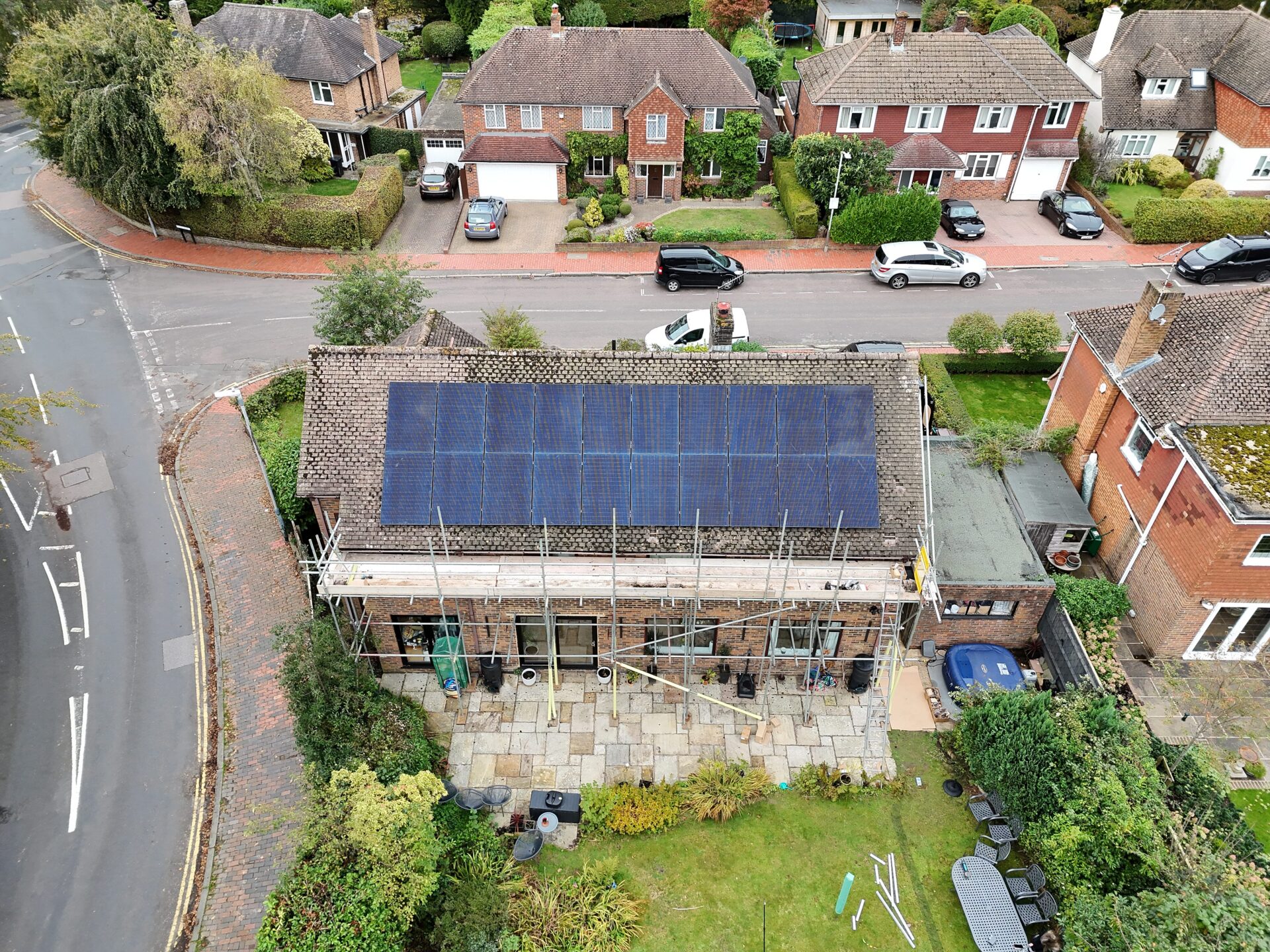

In October 2023, we installed x20 JA solar PV panels, x2 Solis 6kw Hybrid inverters, x3 Pylontech 3.6kw batteries, a Eddi power diverter and a Zappi EV charger.

To start the installation, our solar panel installers, installed bracket and rails to the homeowner’s roof, prepping the roof, ready to lay the solar panels.

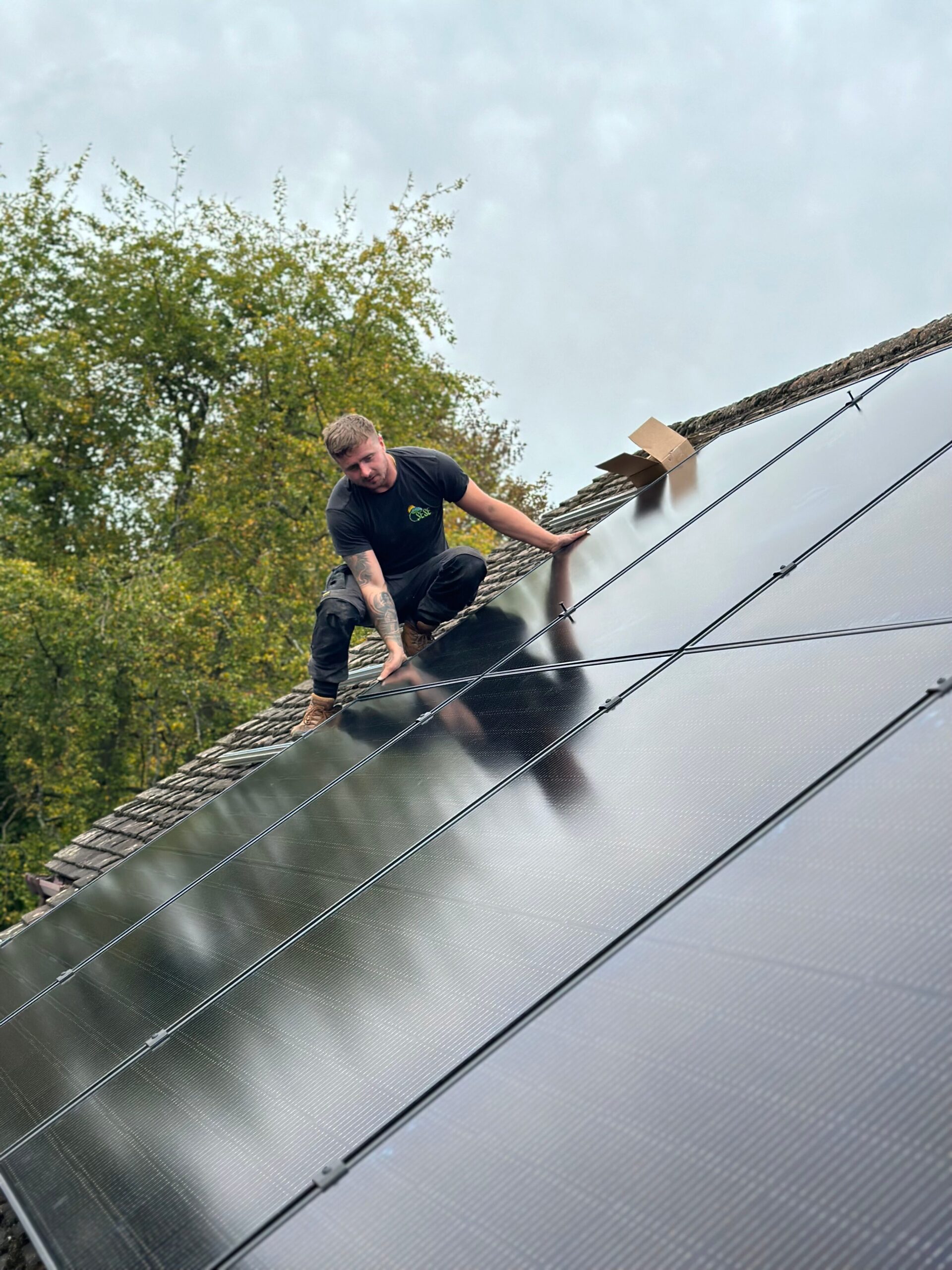

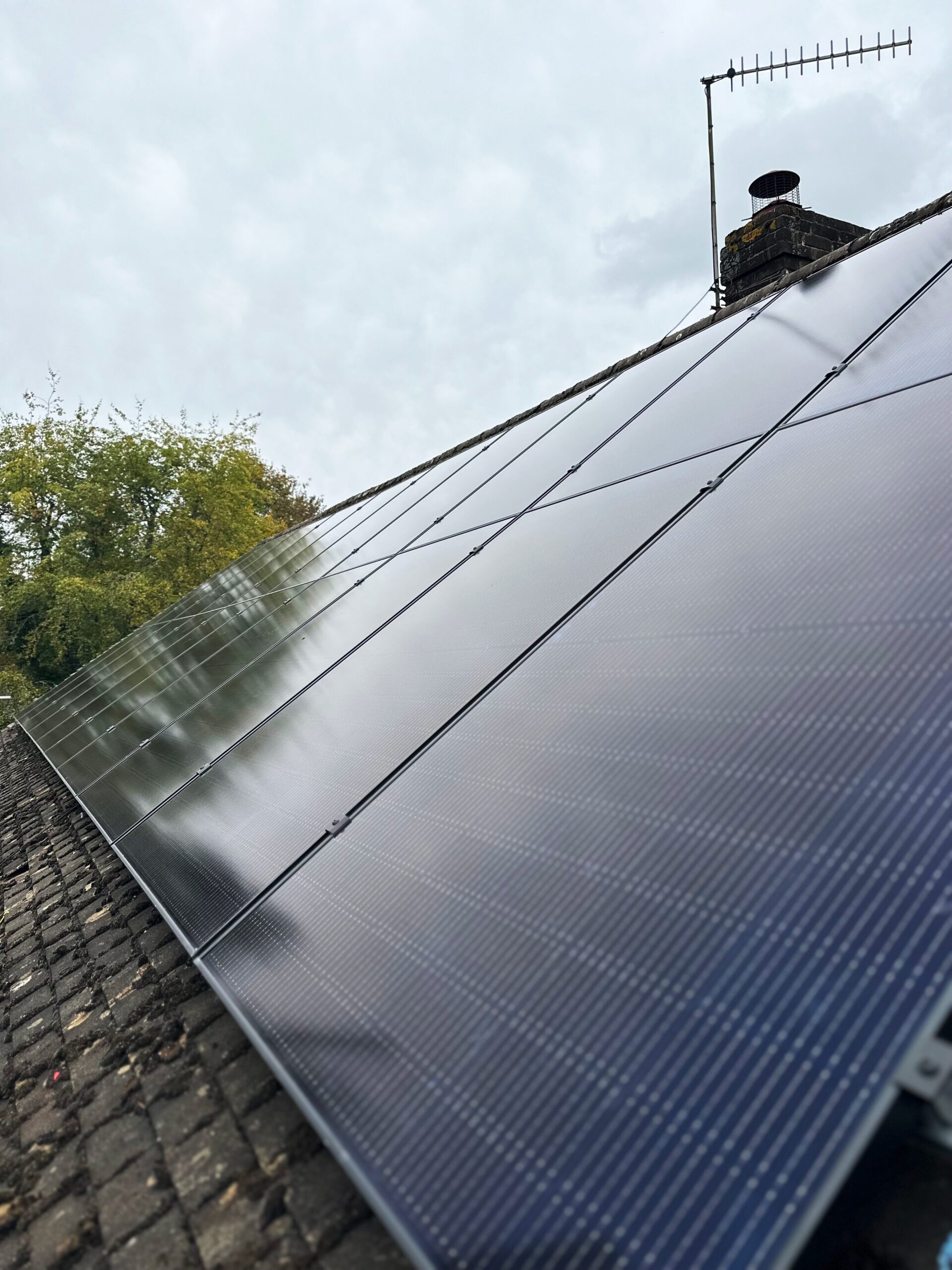

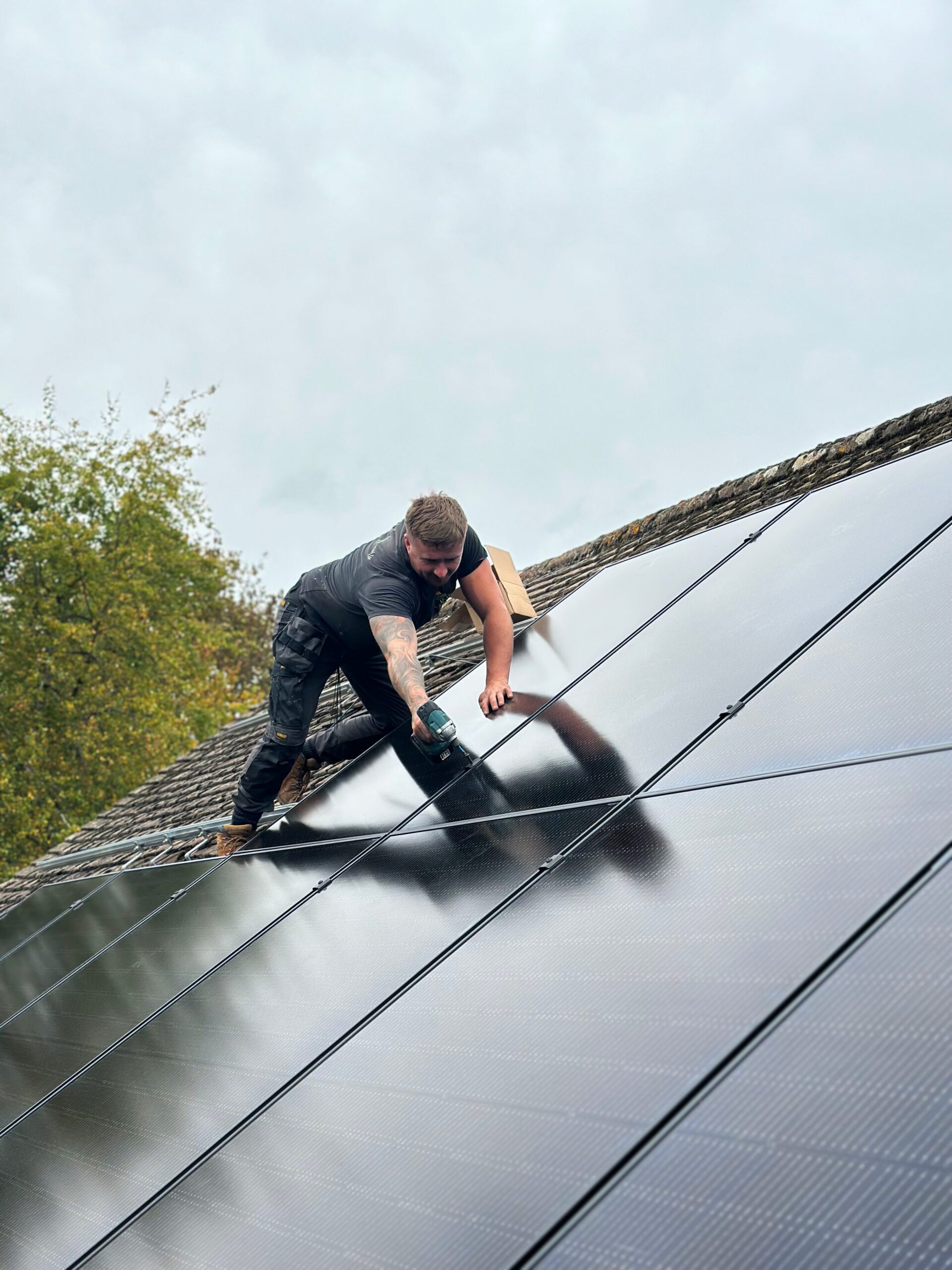

The solar panels are then screwed into the rails, having a 20mm gab between each one, being laid 2 panels high and 10 panels long to leave the homeowners with aesthetically pleasing rectangle.

To start generating the solar PV panels, our installers connect the strings together, which is then connected to the inverter.

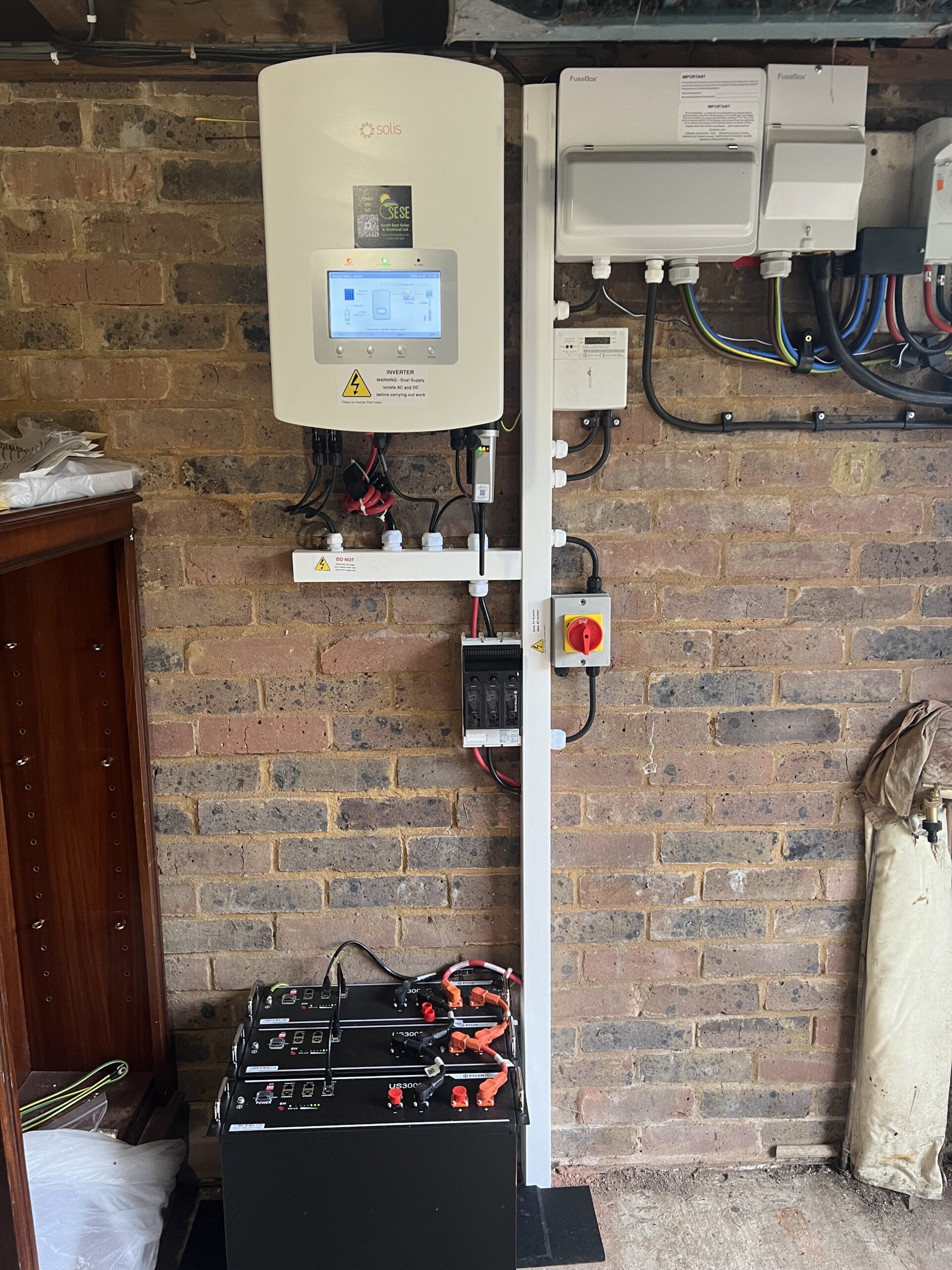

Whilst our installers were laying the solar PV panels, our electricians were installing the Solis Hybrid Inverter, Dyness batteries, Eddi power diverter and Zappi EV charger.
